Dowel Pin DIN 6325 ISO 8734
Dowel Pin DIN 6325 / ISO 8734 Standard sizes.Tolerance: m6 / M6, h7 / H7, etc.Hardness: HRC 58-62, HV 550-650. Material: Bearing Steel GCr15 / SAE52100, 100Cr6.Stainless steel 304 / A2, 316 / A4.Surface Finish: Plain, Plating.Size, thickness, style or other specifications can be designed according to your drawings or samples.
Parallel Pin / Dowel Pin ISO 2338
Parallel Pin / Dowel Pin ISO 2338 Standard sizes. Tolerance: m6, h6, h8, h9, h11.Material: Steel C1035, C1045.Stainless steel ANSI 304, 316.Surface Finish: Plain, Plating.Size, thickness, style or other specifications can be designed according to your drawings or samples.

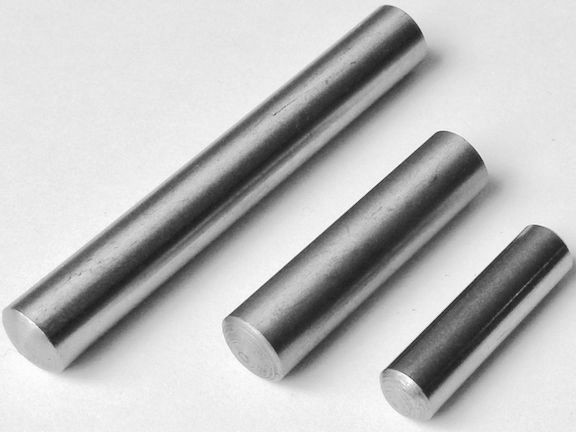

Parallel Pin / Cylinder Pin / Dowel Pin DIN 7
Parallel Pin / Cylinder Pin / Dowel Pin DIN 7 Standard sizes. Tolerance: m6, h6, h8, h9, h11. Material: Steel C1035, C1045.Stainless steel ANSI 304, 316.Surface Finish: Plain, Plating.Size, thickness, style or other specifications can be designed according to your drawings or samples.

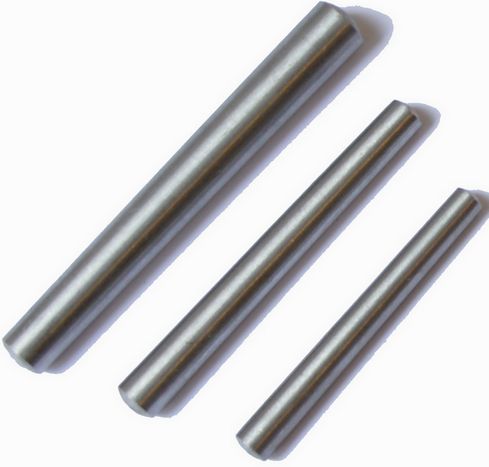

DIN 1 Taper Pin
Taper Pin DIN 1 Standard sizes.Tolerance: h10 Material: Steel C1035, C1045.Stainless steel ANSI 304, 316.Surface Finish: Plain, Plating.Size, thickness, style or other specifications can be designed according to your demand.

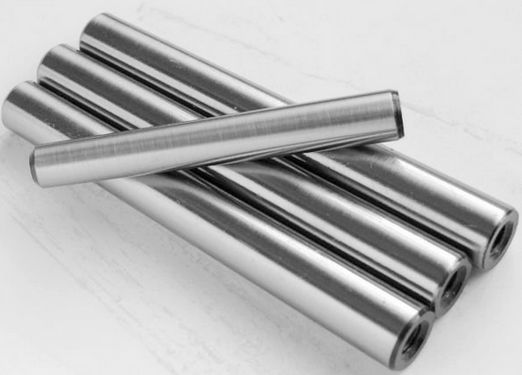

Stainless Steel Taper Pin DIN 7978 A
Stainless Steel Taper Pin with Internal ThreadDIN 7978 A Standard sizes.Tolerance: h10 Material: Stainless Steel ANSI 304, 316.Surface Finish: Natural.

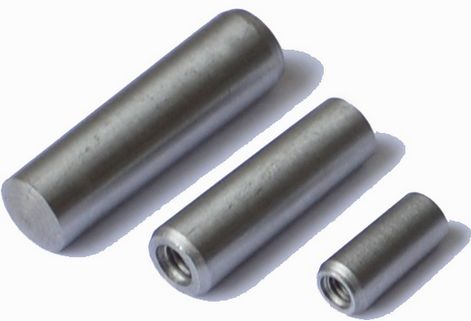

DIN 7978 A Taper Pin with Internal Thread
Taper Pin with Internal Thread DIN 7978 A Standard sizes.Tolerance: h10 Material: Steel C1035, C1045.Stainless steel ANSI 304, 316.Surface Finish: Plain, Plating.Size, thickness, style or other specifications can be designed according to your demand.
